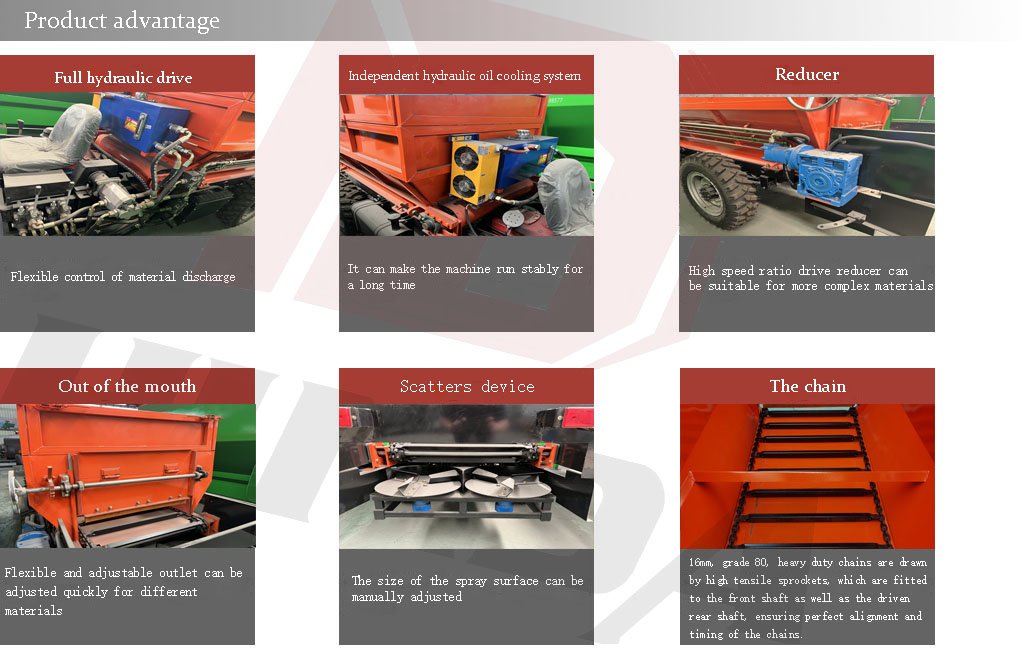

1. The chassis mechanism of the tricycle-type fertilizing vehicle adopts diesel engine power, and The body is small and flexible, and the fertilization power is reliable.
2. The discharge port of the tricycle type fertilizer spreader has a regulating valve, which can adjust the size of the fertilizer port according to different fertilizer output requirements.
3. The hydraulic speed control valve controls the conveying speed of the fertilizer chain. The larger the gear, the faster the fertilizer chain speed, and the larger the amount of fertilizer, and vice versa.
4. The tricycle-type fertilizer spreader can multi-functionally spread chemical fertilizer, manure, compost, biogas fertilizer, smoked soil, kang soil, plant ash, organic fertilizer, etc.
| number | Item | UNIT | Specification |
| 1 | Name | / | ZHD-2 |
| Multipurpose self-propelled fertilizer spreader | |||
| 2 | structural type | / | box |
| 3 | Assignment style | / | back toss |
| 4 | The inner dimension of the material box | mm | Upper length × width×1916*1196 |
| (LxWxH) | Bottom length × width×：1852*864 | ||
| high900 | |||
| 5 | box Volume | m2 | 2 |
| 6 | maximum load | kg | 1600 |
| 7 | Supporting power range | kw | 20.58 |
| 8 | Fertilizer delivery method | / | Hydraulic chain plate push |
| 10 | Number of load-bearing axles | 1 | |
| 11 | wheelbase | mm | 1230 |
| 12 | Tire | / | 7.0-16 |
